Next-Generation Insulated Structural Exterior Sheathing

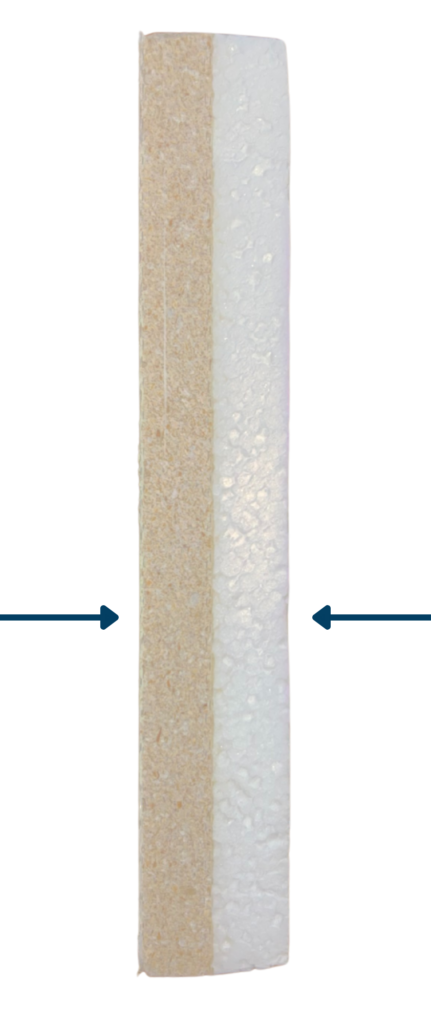

KRATOS™ MX7 is a dual-layer structural exterior sheathing that combines a mineral magnesium oxide (MgO) board with integrated EPS insulation. It delivers structural strength, fire resistance, thermal performance, and moisture control in a single high-performance panel—reducing labor, materials, complexity, and waste, lowering costs and accelerating installation compared to traditional wall assemblies.

One Panel. Multiple Performance Layers. Fewer Risks. Faster Installation.

Talk to an expert

MgO Structural Board

• Non-combustible inorganic mineral composition
• Provides impact resistance, structural shear, racking resistance, and fastener pull-through and pull-out
• Fire-Rated Performance Suitable for 3-Hour Assemblies
• Moisture-resistant, mold-resistant, rot-resistant

½"

⅝"

¾"

MX7

EPS Thermal Layer

• Continuous insulation creates a true thermal break
• Reduces thermal bridging through steel, concrete, or wood framing
• Acts as an air and moisture barrier
• Adjustable R-values to meet climate requirements
• Treated to protect against termites and other pests

½"

1"

1½"

Why MX7 Performs Better

Multiple Performance Benefits in a Single Panel

Fire
Resistance

  • Enhanced fire protection for wall assemblies.

Durability

Durability

  • Resistant to rot, mold, mildew and termites/insects. Built for long-term durability and resilience.

Structural Performance

Structural Performance

  • High shear strength and greater fastener holding capacity.

Sustainability

Sustainability

  • Low carbon footprint with reduced material usage and increased lifespan.

Faster Installation

  • Fewer layers, fewer steps, and fewer components help streamline construction and accelerate installation.

Lower Build Cost

  • Consolidating multiple wall components into a single panel helps lower material, labor, and overall construction costs.

MX7 Works With and Protects All Framing Types

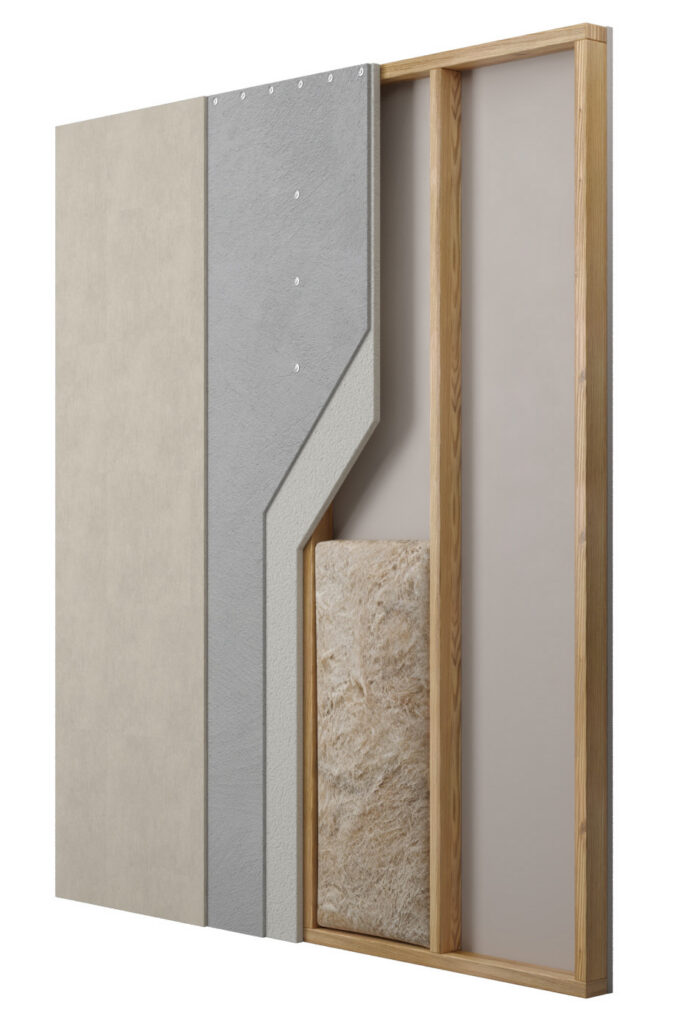

Wood

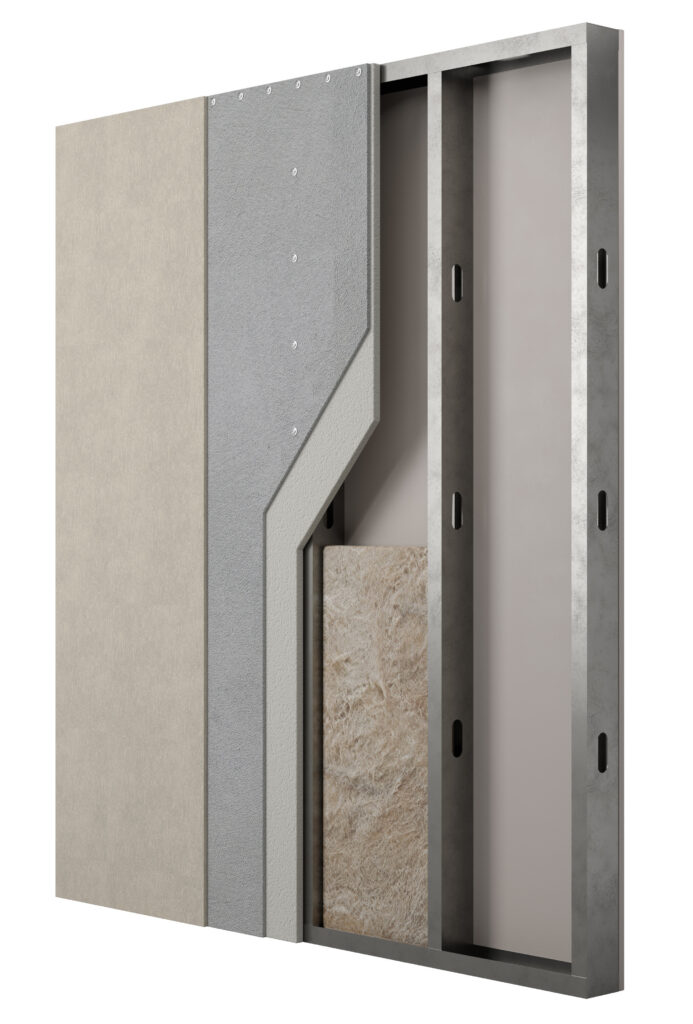

steel

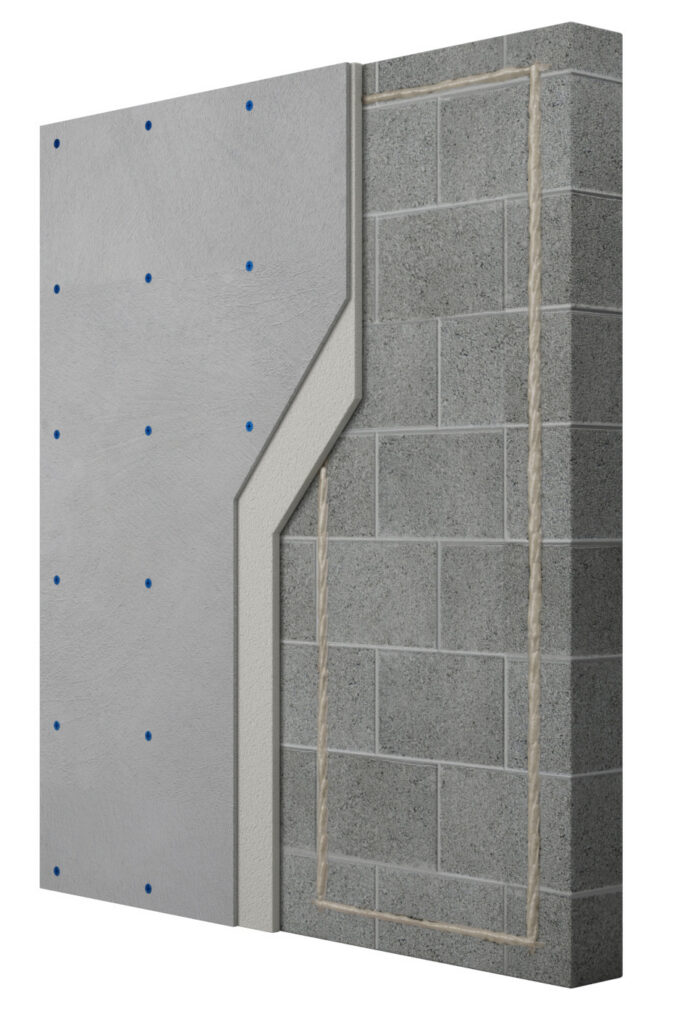

CMU
steel vs. wood

Why Builders Are Moving Away from Wood / OSB Sheathing

Wood

MX7

WOOD

  • fire damage

Burns. Collapses. Code risk.

Combustible lumber feeds structural fires.

MX7

  • non-combustible

Holds structure under heat.

Steel framing meets fire-rated assembly requirements.

WOOD

  • Termite Damage

Eaten. Hollowed. Compromised.

Termites and rodents degrade wood from within.

MX7

  • pest-proof

Inorganic. Nothing to eat.

Steel is immune to termites, rodents, and insects.

WOOD

  • mold risk

Absorbs. Warps. Molds.

Water damage and mildew compound over time.

MX7

  • moisture-proof

Rejects water. No mold or mildew.

Steel + closed-cell foam create a full air/water barrier.

WOOD

  • inconsistent

Cracks. Splits. Warps.

Every board varies. Every wall pays the price.

MX7

  • precisely-engineered

1/16" tolerance. Every panel.

CNC-fabricated for consistency across every build.

Category

Traditional Wood Sheathing (OSB / Plywood)

KRATOS™ mx7

Combustibility

  • Highly combustible
  • Non-combustible mineral sheathing

Fire Rating

  • No inherent fire rating
  • Suitable for 1- and 2-hour fire-rated assemblies

Moisture Resistance

  • Absorbs water, swells, delaminates
  • Moisture-proof, inorganic, no swelling

Mold / Mildew

  • Supports mold and fungus
  • Fully inorganic — mold-resistant

Termites / Insects

  • Vulnerable (requires continuous treatment)
  • Insect and termite resistant

Durability

  • Degrades over time
  • Long-term stability, no rot

Impact Resistance

  • Low to moderate
  • High-impact exterior-grade surface

Air & Water Barrier

  • Requires additional wraps
  • Integrated impermeability — no need for extra building wrap

Thermal Bridging

  • No thermal break
  • Integrated Continuous Insulation layer (Thermal Break)

Thermal Conductivity

  • K-value: ~0.80 Btu·in/hr·ft²·°F
  • K-value: 0.43 Btu·in/hr·ft²·°F

Resistance To Heat Flow

  • R-value/Inch @ ~1.25
  • R-value/Inch @ ~4 to 5

Structural Capacity

  • High
  • High

Environmental Profile

  • High carbon footprint (wood, adhesives, resins)
  • Low-carbon footprint - Magnesium mineral panel

Longevity

  • Limited, dependent on maintenance
  • Long service life — inorganic materials

Installation

  • Multiple layers required
  • Single high-performance panel replaces multiple layers

Cost Over Time

  • Higher maintenance + replacements
  • Lower TCO (Total Cost of Ownership)
Calculate the Difference in Your Project

Replace Low Value with High Performance

MX7 exterior sheathing consolidates multiple wall components into one integrated product, reducing labor costs, material usage, and waste while improving building performance.

Fewer layers. Fewer trades. Fewer failure points. Better Results.

Fewer layers. Fewer trades.
Fewer failure points.
Better Results.

Structural Sheathing

Fire Protection

Continuous Insulation

Air & Water Barrier

Direct Apply Cladding

KRATOS MX7

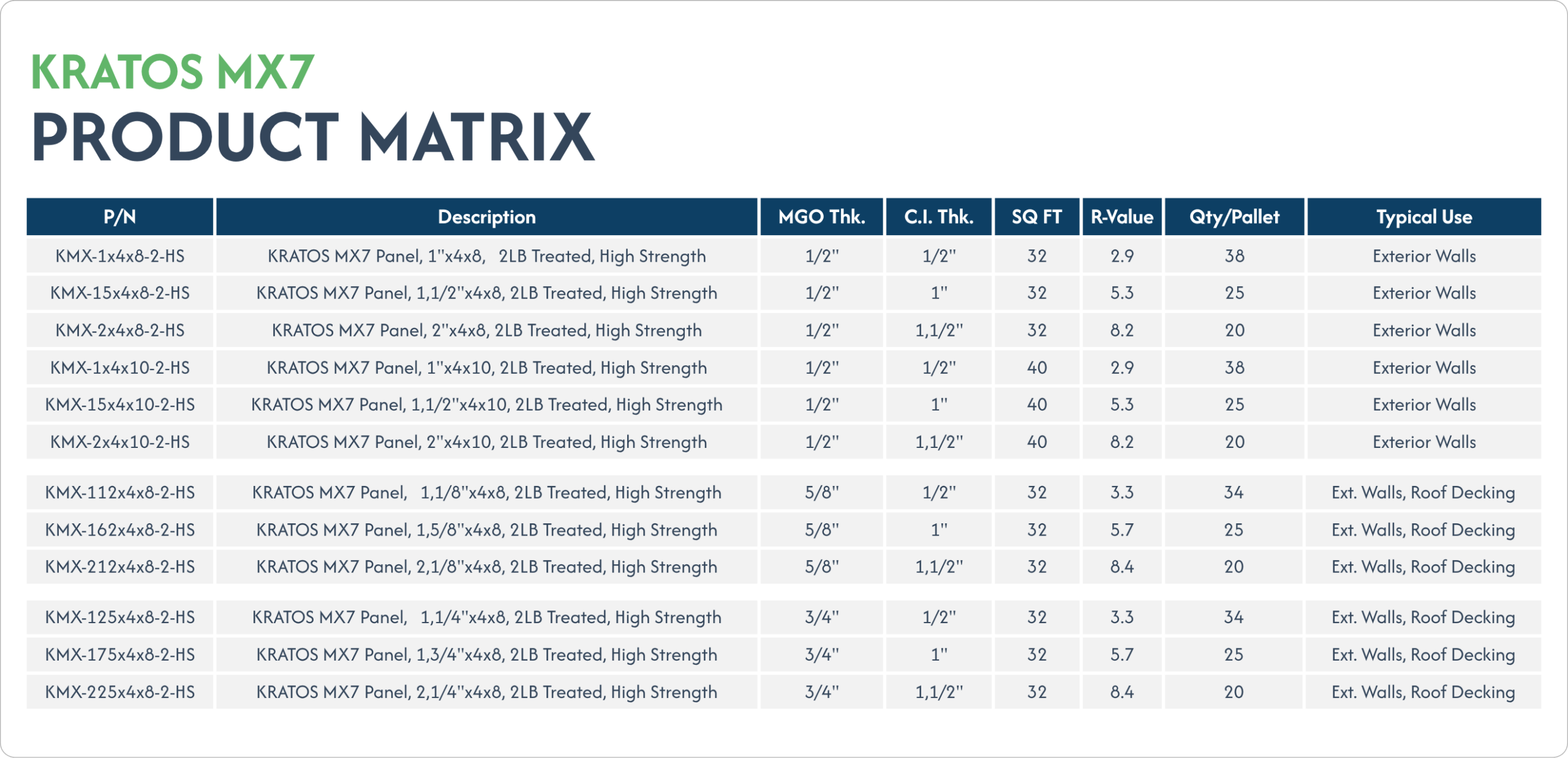

PRODUCT MATRIX

P/N

Description

MGO Thk.

C.I. Thk.

SQ FT

R-Value

Qty/Pallet

Typical Use

KMX-1x4x8-2-HS

KRATOS™ MX7 Panel, 1"x4x8, 2LB Treated, High Strength

1/2"

1/2"

32

2.9

38

Exterior Walls

KMX-15x4x8-2-HS

KRATOS™ MX7 Panel, 1,1/2"x4x8, 2LB Treated, High Strength

1/2"

1"

32

5.3

25

Exterior Walls

KMX-2x4x8-2-HS

KRATOS™ MX7 Panel, 2"x4x8, 2LB Treated, High Strength

1/2"

1,1/2"

32

8.2

20

Exterior Walls

KMX-1x4x10-2-HS

KRATOS™ MX7 Panel, 1"x4x10, 2LB Treated, High Strength

1/2"

1/2"

40

2.9

38

Exterior Walls

KMX-15x4x10-2-HS

KRATOS™ MX7 Panel, 1,1/2"x4x10, 2LB Treated, High Strength

1/2"

1"

40

5.3

25

Exterior Walls

KMX-2x4x10-2-HS

KRATOS™ MX7 Panel, 2"x4x10, 2LB Treated, High Strength

1/2"

1,1/2"

40

8.2

20

Exterior Walls

KMX-112x4x8-2-HS

KRATOS™ MX7 Panel, 1,1/8"x4x8, 2LB Treated, High Strength

5/8"

1/2"

32

3.3

34

Ext. Walls, Roof Decking

KMX-162x4x8-2-HS

KRATOS™ MX7 Panel, 1,5/8"x4x8, 2LB Treated, High Strength

5/8"

1"

32

5.7

25

Ext. Walls, Roof Decking

KMX-212x4x8-2-HS

KRATOS™ MX7 Panel, 2,1/8"x4x8, 2LB Treated, High Strength

5/8"

1,1/2"

32

8.4

20

Ext. Walls, Roof Decking

KMX-125x4x8-2-HS

KRATOS™ MX7 Panel, 1,1/4"x4x8, 2LB Treated, High Strength

3/4"

1/2"

32

3.3

34

Ext. Walls, Roof Decking

KMX-175x4x8-2-HS

KRATOS™ MX7 Panel, 1,3/4"x4x8, 2LB Treated, High Strength

3/4"

1"

32

5.7

25

Ext. Walls, Roof Decking

KMX-225x4x8-2-HS

KRATOS™ MX7 Panel, 2,1/4"x4x8, 2LB Treated, High Strength

3/4"

1,1/2"

32

8.4

20

Ext. Walls, Roof Decking

  • NOTES
  • All KRATOS™ Panels are shipped in Full Pallet quantities only.
  • Standard delivery lead time is 1-2 weeks. Actual lead time may vary depending on order size and destination.
  • Standard MX7 panel sizes are 4' x 8' with straight edges Special configurations (thickness, edge type & sizes) are available for large projects.
  • R-Values specified are based on values @ 40 deg. F (per inch), and are for the MX7 panel only, not the complete wall assembly.
  • R-VALUES:
  • 12mm MGO = .5
  • 16mm MGO = .74
  • 18mm MGO = .74
  • 2lb EPS = 4.8 @ 1"

Make the Switch to MX7 Today!

Request a Sample
Talk to Our Team
Download MX7 Flyer

MgO Structural Board - MX7

Non-combustible mineral composition with structural shear and impact resistance, high fastener pull-through strength, adjustable thickness for 1–2 hour fire-rated assemblies, and high resistance to moisture, mold, mildew, and rot.

EPS Thermal Core - MX7

Integrated structural sheathing with continuous insulation. Eliminates thermal bridging while adding R-value. Pre-installed in the factory, guaranteeing fit and function in the field with reduced waste and a simplified installation process.
